Sykes Chapel
The University of Tampa
Tampa, Florida

Opus 89

GREAT - II
16'		Principal
8'		Principal
8'		Harmonic Flute
8'		Chimney Flute
8'		Gamba
4'		Octave
4'		Spire Flute
2-2/3'		Twelfth
2'		Fifteenth
1-3/5'		Seventeenth
IV		Mixture 2'
16'		Posaune
8'		Trumpet
4'		Clarion
8'		Horizontal Trumpet
		Swell to Great
		Choir to Great
SWELL - III (enclosed)
8'		Diapason
8'		Bourdon
8'		Viola
8'		Voix Celeste (CC)
4'		Octave
4'		Harmonic Flute
2-2/3'		Nasard
2'		Piccolo
1-3/5'		Tierce
III		Mixture 2'
16'		Bassoon
8'		Trumpet
8'		Oboe
4'		Clarion
		Tremulant
CHOIR - I (enclosed)
16'		Bourdon
8'		Salicional
8'		Gemshorn
8'		Unda Maris (GG)
8'		Lieblich Gedeckt
4'		Fugara
4'		Recorder
2'		Flageolet
II		Mixture 1'
8'		Trumpet
8'		Clarinet
8'		Vox Humana
		Tremulant
8'		Horizontal Trumpet (Great)
		Swell to Choir
PEDAL
32'		Contra Bourdon
16'		Open Diapason
16'		Principal (Great)
16'		Subbass (ext. Contra Bourdon)
16'		Bourdon (Choir)
8'		Octave
8'		Flute (ext. Open Diapason)
8'		Gedeckt (ext. Contra Bourdon)
4'		Super Octave
IV		Mixture 2-2/3'
32'		Contra Trombone
16'		Trombone (ext. Contra Trombone)
16'		Posaune (Great)
8'		Trumpet (Great)
4'		Clarion (Great)
8'		Horizontal Trumpet (Great)
		Great to Pedal
		Swell to Pedal
		Choir to Pedal

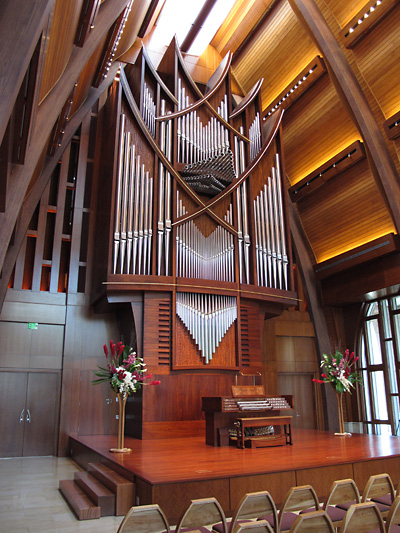

Case of American black cherry
Detached console with drawknobs in angled terraces
Mechanical key action, electric stop action
256 level combination action

There are two webcams following the construction of Sykes Chapel:
Front View Webcam
Rear View Webcam

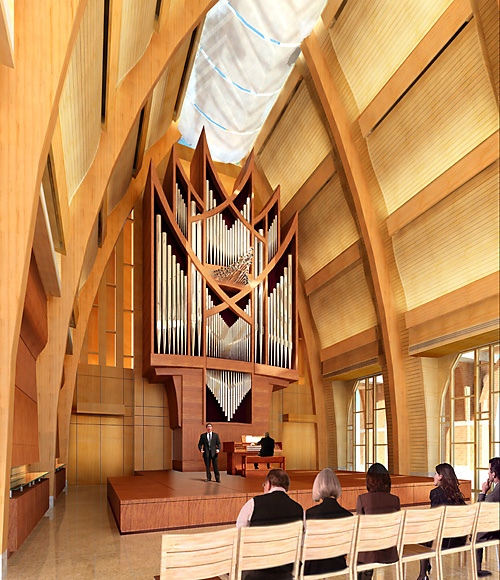

Rendering at top of page courtesy of TVS Architects.
